Time savings up to 90% with better quality

What the Eckenformer TZ 01 135F can do:

  • Complete processing (coping and rounding) on 135° corners, for example
  • Examples of workpieces: Corner shelves, base unit shelves
  • Good quality of the cut surfaces, not achievable with manual labour
  • For plastic and wood materials
  • Relatively small investment
  • BG-tested, GS mark
  • Property right registered at the patent office (20 2005 004 759.7)
Field of application
  • For plastic and wood materials
  • Examples of workpieces: Corner shelves, base unit shelves
  • Complete processing (coping and rounding) on 135° corners, for example
  • Start: The part is inserted into the left-hand side of the corner former on a movable table and pushed against the front stop.
  • Step 1: The part is clamped in this position with a lever. By further increasing the force, the table with the part is set in motion and moved past the rotating tool, the protruding end of the edge strip is milled off and the part is given a radius (shown as a dashed line). There are now still pointed residual corners (top and bottom), which are removed in the next step.
  • Step 2: To do this, place the part horizontally on the table on the right-hand side and position it on a rotating stop, sliding it back and forth horizontally. This removes one leftover corner. For the second remnant corner, the part is turned over and the process is repeated.

Conclusion: The time saving compared to parting off, filing and grinding is up to 90% with better quality.

  • On request
  • Machine
  • Special milling cutter, assembled and tested
  • Every machine with milling cutter is tested and approved on wood/plastic
  • Operating instructions
  • Tool
  • Machine
  • Milling cutter, mounted and preset
  • Every machine with milling cutter is tested and approved on wood/plastic
  • 1 bottle of compressed air tool oil with specification
  • Operating instructions
  • Tool
Dear Mr Hessler, As we have been using your milling cutters in our production for quite some time now, are very satisfied with them and achieve consistently good quality, we would like to continue using them.
Mr Raabe
Mr RaabeBriloner Möbelfertigungsgesellschaft mbH, Brilon
“We are very satisfied with the notcher. We can only recommend it” The clinker brick is used for high-quality interior fittings for yachts, private jets and residences.
Interior fittings for yachts, private jets, residences
Mr WittmannVEDDER GmbH
We love this thing. We use it for several hours a day. We use it to do small jobs before painting, e.g. rounding. One employee is responsible for topping up the oil in the maintenance unit.
Mr Esser
Mr EsserKölner Möbelwerkstätten GmbH & Co. KG

Work steps corner former TZ 01

Start with a workpiece that has a corner A with an angle alpha, preferably 135°.

This workpiece was produced by an angular cut, e.g. on a sliding table saw (Altendorf, Martin, Panhans, SCM, Casadei etc.) and then edged on an edge banding machine (Holz Her, Brandt, IMA, Homag, Ott, Hebrock etc.) and milled flush and radius.

Start:

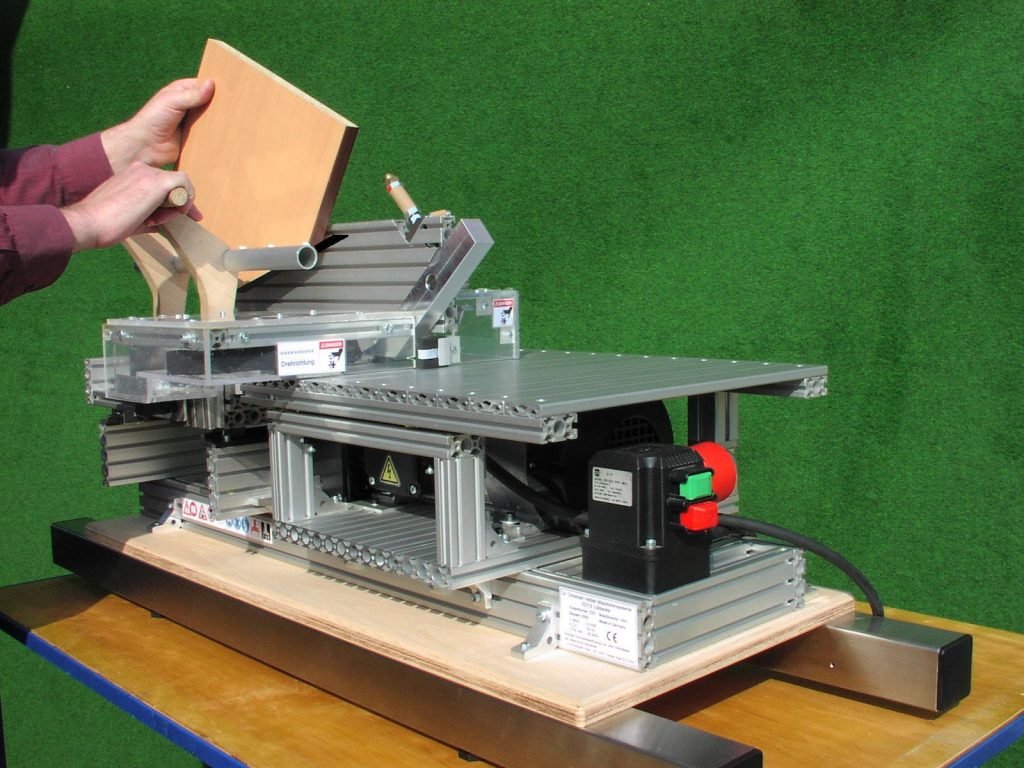

The part is inserted into the left-hand side of the corner former on a movable table and pushed against the front stop.

Step 1

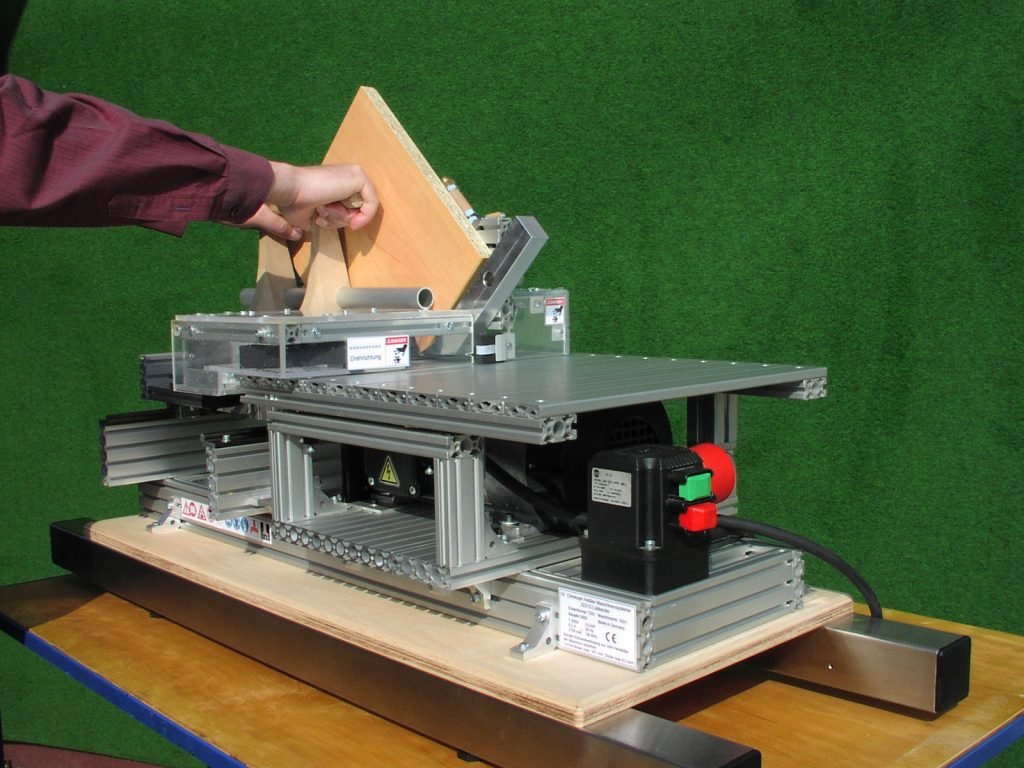

The part is clamped in this position with a lever. By further increasing the force, the table with the part is set in motion and moved past the rotating tool.

The protruding end of the edge strip is milled off and the part is given a radius (shown as a dashed line). There are now still pointed residual corners (top and bottom), which are removed in the next step.

Step 2

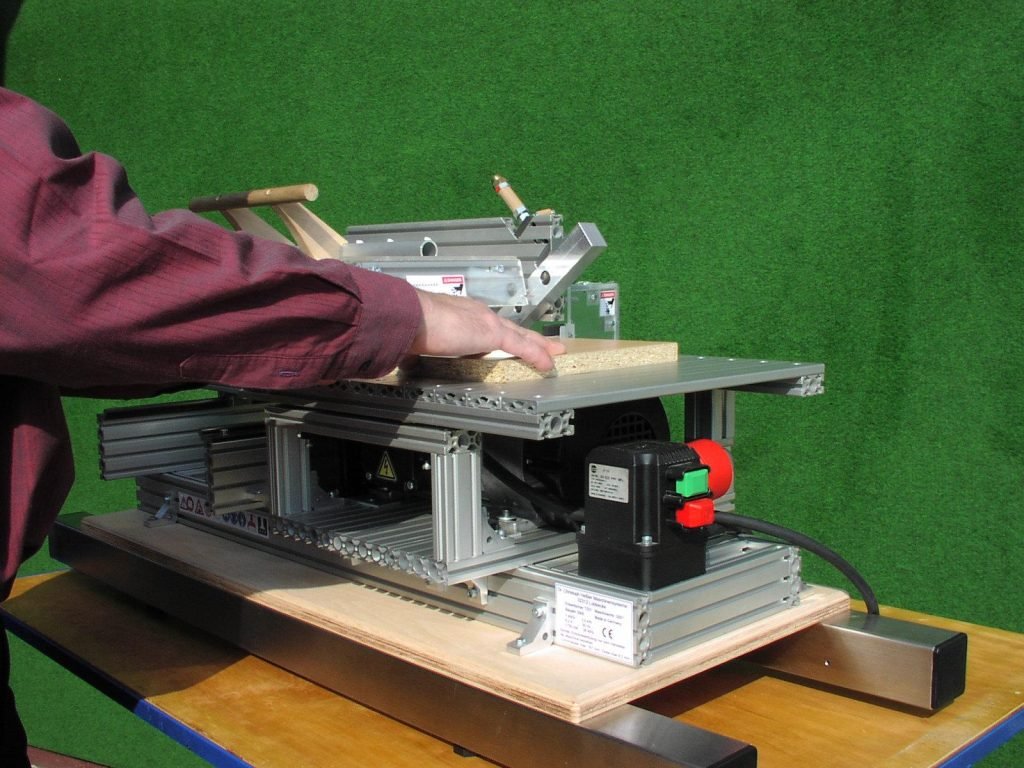

To do this, place the part horizontally on the table on the right-hand side and position it against a rotating stop.

It is pushed back and forth horizontally. This removes one leftover corner. The part is turned over for the second remnant corner and the process is repeated.

The corner is completely machined.

Conclusion:

The time saving compared to parting off, filing and grinding is up to 90% with better quality
