What the MZ 02 90F corner rounder can do:
- Precise 90° corner rounding without blurring
- Clean milling result
- Very good handling
- Now new: Even the standard version comes with a pleasantly low-noise motor with speed adjustment
The specialist for clean corner rounding
Take your furniture to a new level with our MZ 02 90F corner rounder! As a carpenter or joiner, you know how important precise work and clean results are. Our corner rounder, also known as an edge coping machine, enables precise 90° corner rounding without wobbling and ensures a clean routing result. Thanks to its robust design and excellent handling, it is perfect for professional use in trade and industry.
Lightweight and ergonomic
New: Even the standard version of our corner rounder has a pleasantly low-noise motor with speed adjustment. With our copying unit, you can round the desired corners quickly and easily to save time and labour. You can adjust the speed to achieve optimum rounding results every time.
Better quality in less time
Save time and improve the quality of your work with our MZ 02 90F corner rounder. Discover now how easy it can be to round sharp corners and take your furniture to a new level!
Also known as and alternative to corner shaper, edge shaper, edge planer, corner planer, edge rounding machine, edge trimmer, corner trimming machine, edge smoothing machine or corner rounding machine, scraper.
Also known as and alternative to corner shaper, edge shaper, edge planer, corner planer, edge rounding machine, edge trimmer, corner trimming machine, edge smoothing machine or corner rounding machine, scraper.
System features Corner rounder
Anwendungsgebiet für den Eckenrunder
- Precise 90° corner rounding without blurring
- Corner copier and corner copier for edge rounding
- Clean milling result, very good handling
- Bereits in der Standardausstattung ha der Eckenrunder einen angenehm lärmreduziertem Motor mit Drehzahleinstellung
Function and operation
- Guide as straight holding aid with workpiece support arm
- Lightweight air motor with milling cutter, standard R2
- Einstellbare Radialanschläge und Anlauflagerbremse direkt am Eckenrunder
- Very light (1.4kg)
Price
- Corner rounder MZ 02 90F with noise-reduced standard air motor including speed adjustment: € 620 net: This is a fraction of a copying unit.
- Corner rounder MZ 02 90F Silent with particularly quiet compressed air motor with exhaust air hose: € 680 net
- Packing and shipping Germany € 15 net
Technical requirements
Für den Betrieb ist es notwendig, dem Eckenrunder regelmäßig Druckluft-Geräteöl zuzuführen. Dies kann bei sporadischem Gebrauch durch direktes Einträufeln in den
The oil can be applied by means of a compressed air connection plug or, in the case of continuous operation, by means of a maintenance unit set to 1 drop of oil per minute.
Scope of delivery
- Machine
- Milling cutter, mounted and preset
- Every machine with milling cutter is tested and approved on wood/plastic
- Original equipment compressed air device oil with specification
- Operating instructions
- Tool

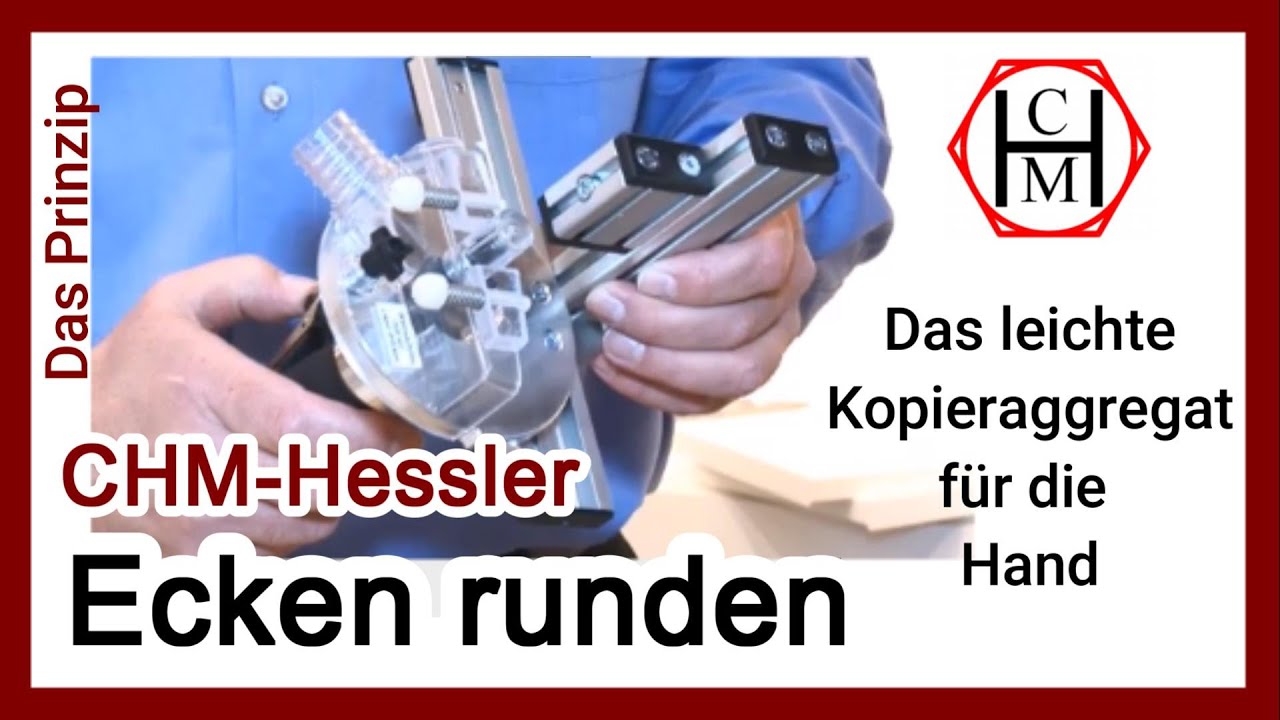

Arbeiten mit dem Eckenrunder:
Dieser Eckenrunder ist mit einer wartungsfreien Führung ausgestattet, die das Verwackeln ausschließt. Sie wird durch das leichte Aufdrücken des Auflagearmes auf das Werkstück in der Senkrechten positioniert. Im Auflagearm befinden sich beidseits Rundanschläge, wodurch die Auflageposition sehr komfortabel gefunden wird.
An dem Absaugadapter sind zwei Schrauben befestigt, die in Richtung des Radius des Werkzeuges zeigen und deshalb Radialanschläge genannt werden. In der unteren Position des Eckenrunders, wenn das Anlauflager an der Werkstückunterseite anliegt, stößt der obere Radialanschlag gegen die vordere Werkstückkante. Dadurch wird feinfühlig und genau festlegt, wie weit das Werkzeug fräsen soll. Die Handhabung wird sicherer und einfacher.
When the thrust bearing rolls over the front edge of the workpiece, the radial stops are lifted off the edge of the workpiece.
Thanks to the special design of the support disc, the pneumatic unit can be held very close to the workpiece. This results in a very good guiding sensation over the entire milling path.
The rollover path is also limited on the upper side by the associated lower radial stop.
In addition to better handling, the radial stops limit or prevent milling marks.
If the edge strip, over which the thrust bearing rolls, protrudes slightly over the top, the thrust bearing sinks down onto the top with the milling cutter. This can result in an unsightly depression on the upper side of the disc-side edge strip. The radial stop can prevent it from sinking. The same applies to the underside.
Can be used for right and left corners
Der Eckenrunder ist sowohl für rechte als auch linke Ecken einsetzbar. Für eine linke Ecke wird der Eckenrunder lediglich gewendet und exakt spiegelbildlich eingesetzt. Umbauten oder Umstellungen sind dafür nicht notwendig.
