45-degree chamfer bit for bevelled edge
Technical features
- Bevel cutters for angled narrow sides with 45°
- Other angles and curves can be realized according to customer requirements
- For rounding off attached edges on sloping surfaces
- Radius according to customer request, the standard is R2
- Set of two cutters for sharp and blunt sides
- Hard metal cutting with optimized cutting geometry
- Steel bearing block with matching bearing ring
Price range: 193,00 € through 386,00 € without VAT.
Problem
On sloped sides and 45° surfaces, attached edges must be clean. rounded off Different tool geometries are required for the sharp and obtuse side of a bevel.
Solution
The edge cutter was specially designed to fit into existing beveling narrow sides to chamfer a radius. For machining, there are versions available for the pointed and the blunt side.

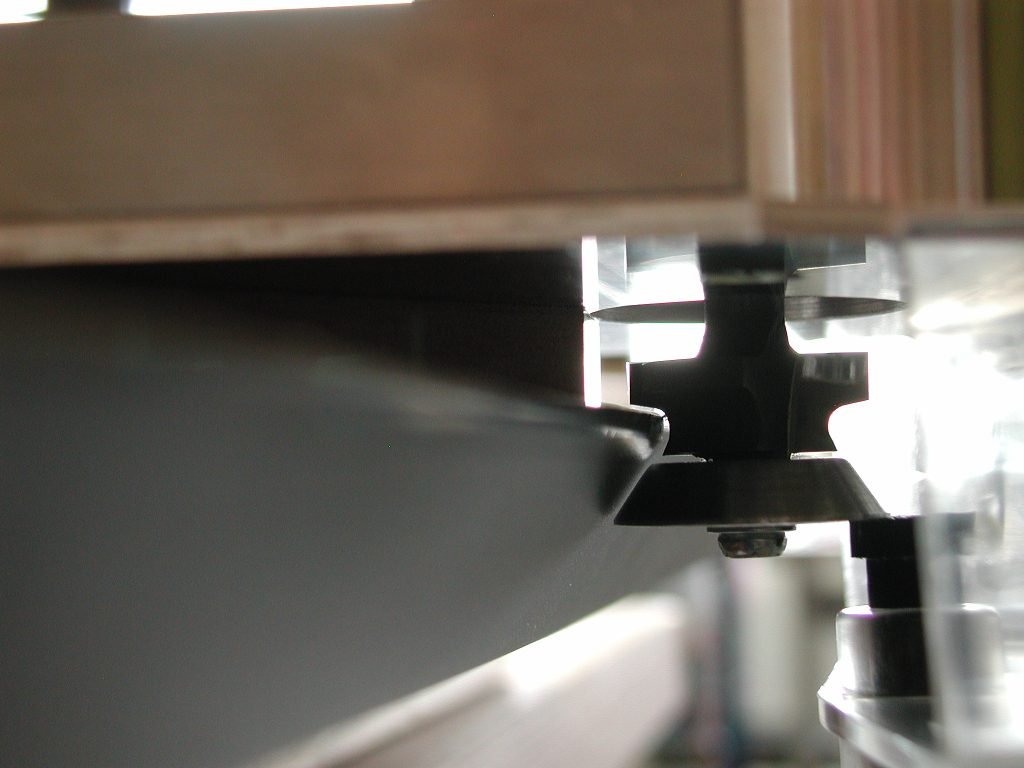

The milling set consists of two milling cutters with one guide bearing with a guide ring on each.
How it works
- The edge cutter is inserted into an existing bevel.
- The lower the edge overhang is, the better the milled surface is.
- A radius is milled into the slope.
- The feedstock guides the cutter along the edge.
- Depending on the workpiece, the design is used for the pointed or blunt side.
- The result is a cleanly rounded edge.
Technical highlights
- Edge cutters for 45° slopes
- Sawing set for sharp and blunt sides
- 2 carbide cutting edges
- Optimised cutting edge geometry
- Steel thrust bearing
- Ring of contact suitable for the respective angle
- Radius can be selected freely
- Standard radius R2
- High-quality one-of-a-kind production
Use cases
- Rounding off of attached edges on sloped narrow sides
- Slanted furniture fronts
- Wood construction parts with 45° bevel
- Plastic parts with a diagonal narrow side
- Individual angles and radii on request
7. Before
A sloping narrow side already exists, on which no radius machining has yet been performed.
8. Later
A radius was milled into the existing slope. This creates a rounded edge at the sloped narrow side.
Scope of delivery
- Either cutters for the pointed side
- Or cutters for the blunt side
- Or a milling set
- Access ring suitable for the angle
Technical data
| Characteristic | Value |
|---|---|
| Product type | Beveling cutters for bevelled edges |
| Angles | 45° or according to customer request |
| Explanations | Top side / Bottom side |
| Cutting | 2 carbide cutting blades |
| Cutting geometry | Optimized |
| Loading warehouse | Steel with a starting ring |
| Radius | R2 or according to customer request |
| Shaft | 8 mm |
| Rotation speed | up to a maximum of 30,000 rpm |
| Materials | Wood and plastic |
| Max. edge overhang | 3 mm |
| Article / Model | kantenfraeser-45-degree-bevel |
